Private Networking with SGA (AHV)

Customers using Nutanix AHV infrastructure can create a Frame account using Customer-managed networking, Private Networking with Streaming Gateway Appliance (SGA) so users can access the Frame workload VMs through the public IP address of the SGA VM. The Internet-accessible SGA VM serves as a reverse proxy for Frame sessions between the end users and their Frame workload VMs in the private network. The Frame workload VMs only have private IP addresses. Customers will also need to ensure these workload VMs, Cloud Connector Appliances (CCAs), and Streaming Gateway Appliances (SGAs) can communicate to the Frame control plane on the Internet.

   If a customer requires an outbound proxy server for any communication to the Internet, the outbound proxy server must       support both HTTPS and Secure WebSocket (WSS) in order for the Frame Guest Agent (FGA), CCAs, and SGAs to establish       HTTPS and WSS connections to Frame Platform.

  To ensure proper network communication to the Frame Platform there are two Backends available depending on which one    should be used for the connection for services and VMs please refer to the corresponding networking requirements:
  USE (located in the United states- Location AWS us-east-1Virginia)
  DEU ( located in European Union - Location AWS eu-central-1 Frankfurt)

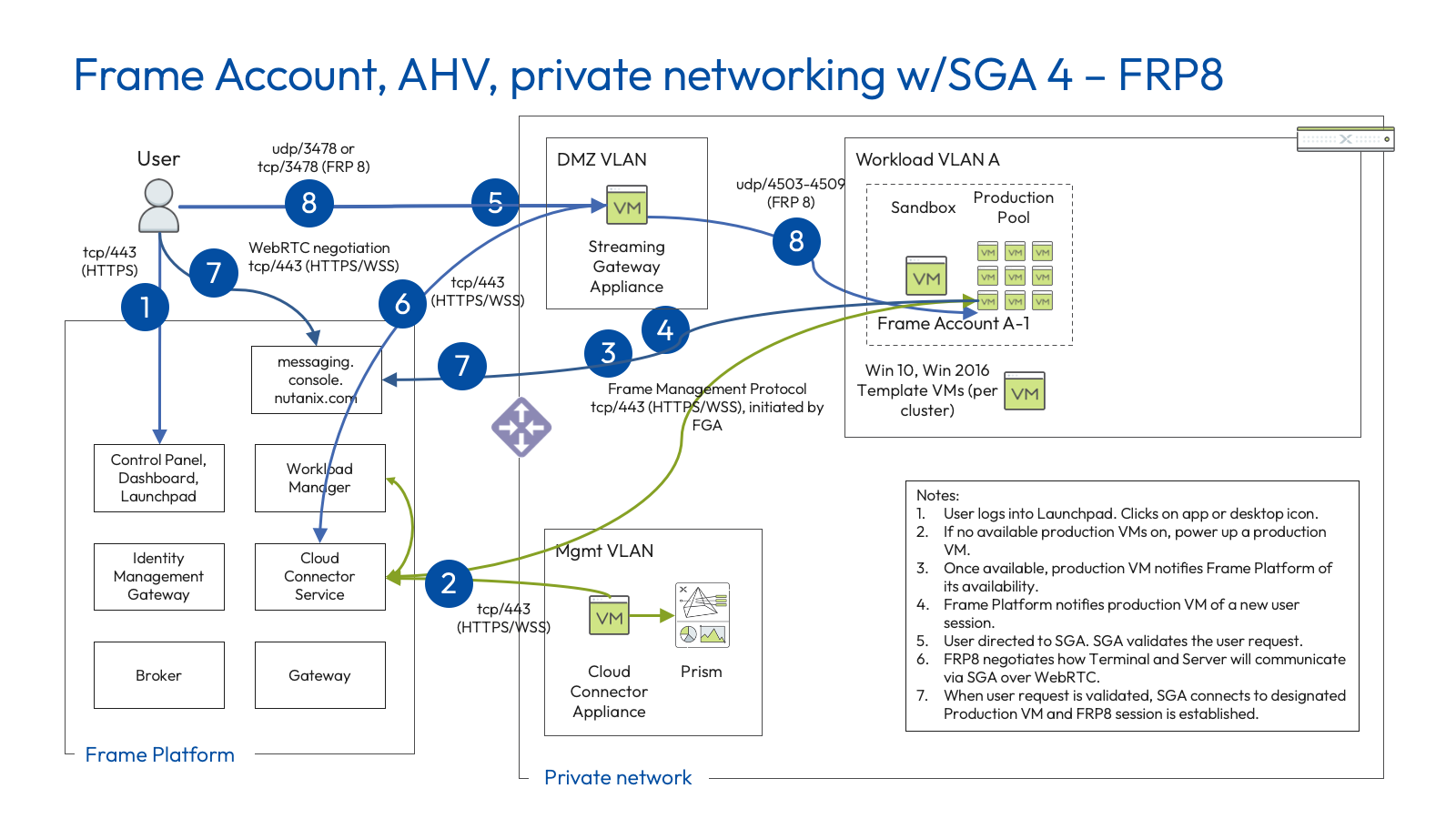

FRP8 Networking (SGA 4)

FRP8 is a udp-based protocol for all communication between the end user and the Frame workload VMs.

The following table describes the required protocols and ports for Frame accounts using Private Networking with SGA 4 and FRP8.

  Dizzion is in the process of migrating from *.nutanix.com to *.difr.com domain. For the
  time being, the additional difr.com domains will need to be whitelisted in addition to the
  existing nutanix.com domains. At a later time, once Dizzion has confirmed there is no
  dependencies on the nutanix.com domains, we will send out a communication notifying
  customers that all nutanix.com domains can be safely removed from your whitelist
  configurations.

  IMPORTANT: For IMG Domains, Customers can whitelist new IMG difr domains but
  should NOT change SAML 2 configurations to use new difr.com domains. SAML 2
  configurations should continue to use img.console.nutanix.com and
  img.frame.nutanix.com until further direction from Dizzion

USE: Nutanix AHV - Private Networking with Streaming Gateway 4

FRP8 Networking (SGA 4)

The following table lists the required protocols and ports for Frame accounts using Private Networking with SGA 4 and FRP8, specifically for organizations electing to use Dizzion's EU control plane.

DEU: Nutanix AHV - Private Networking with Streaming Gateway 4
