Private Networking (AHV)
Customers using Nutanix AHV infrastructure can create a Frame account using Customer-managed networking, Private Networking so users must access the Frame workload VMs using the private IP addresses of the Frame workload VMs. Since the Frame workload VMs have no public IP addresses, the customer must provide a network path between the end user and the private Frame workload VMs. Customers will also need to ensure these workload VMs and Cloud Connector Appliances (CCAs) can communicate to the Frame control plane on the Internet.
FRP8 Networking

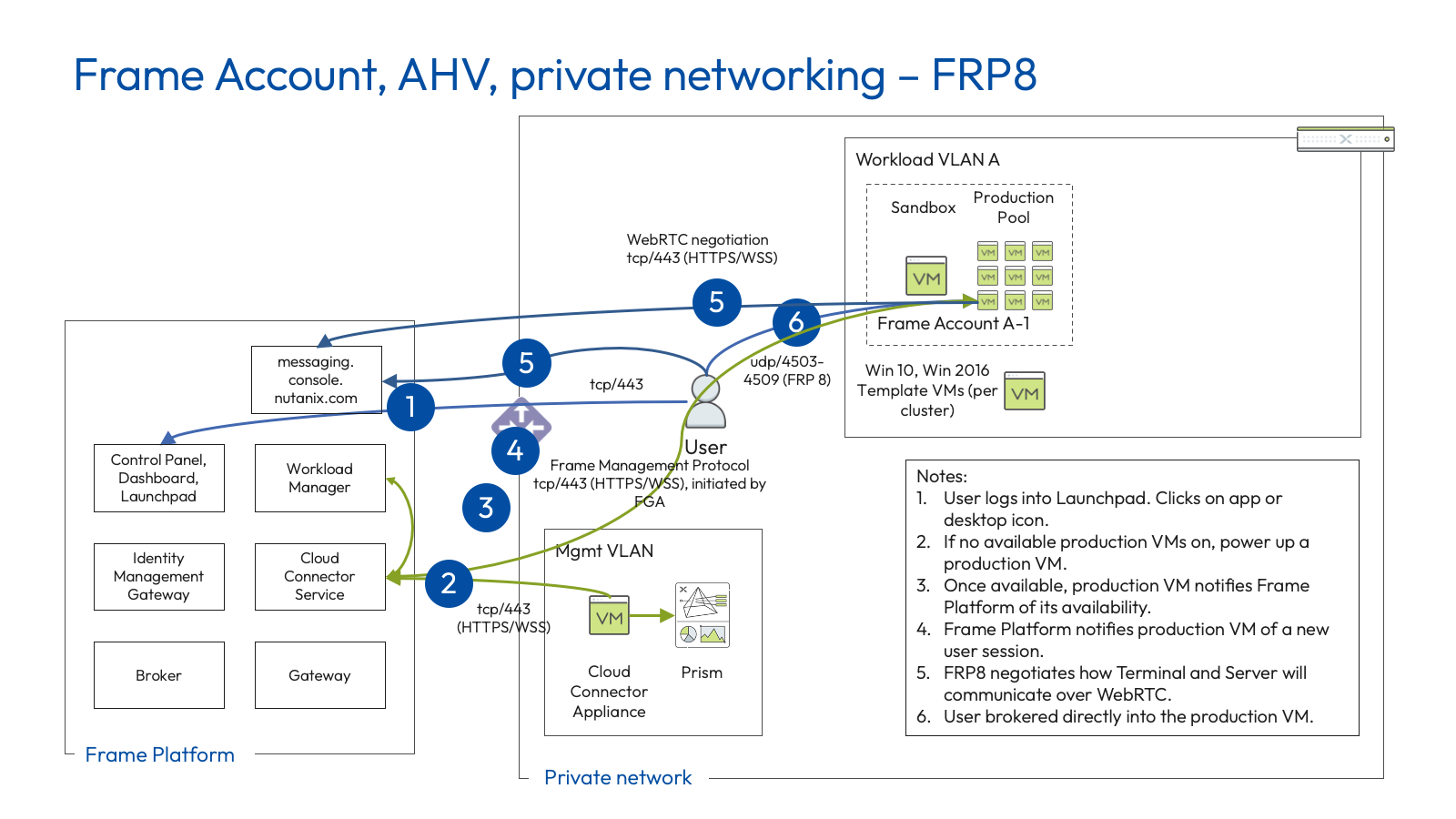

FRP8 is a udp-based protocol for all communication between the end user and the Frame workload VMs.
The following table describes the required protocols and ports for Frame accounts using Private Networking and FRP8.
Nutanix AHV - Private Networking
| Source to Destination | Source IP address | Destination FQDN(s) | Protocol/port |
|---|---|---|---|
| Cloud Connector Appliance (CCA) to Frame Platform | Public IP address |
|
tcp/443 (HTTPS) |
| Cloud Connector Appliance (CCA) to Frame Platform | Public IP address |
|
tcp/443 (HTTPS, WSS) |
| Prism Central to Frame Platform | Public IP address |
|
tcp/443 (HTTPS) |
| CCA to Prism Central | Private IP address |
|
tcp/443 (HTTPS) |
| CCA to Prism Element | Private IP address |
|
tcp/443 (HTTPS) |
| Workload VMs to Frame Platform | Public IP address |
|
tcp/443 (HTTPS) |
| Workload VMs to Frame Platform | Public IP address |
|
tcp/443 (HTTPS, WSS) |
| End user to Frame Platform | Public IP address |
|
tcp/443 (HTTPS) |
| End user to Frame Platform | Public IP address |
|
tcp/443 (HTTPS, WSS) |
| End user to Workload VM | Private IP address |
|
udp/4503-4509, tcp/4503-4509 (optional) |
FRP8 Networking - EU
The following table describes the required protocols and ports for Frame accounts using Private Networking and FRP8, , specifically for organizations electing to use Dizzion's EU control plane.
DEU: Nutanix AHV - Private Networking
| Source to Destination | Source IP address | Destination FQDN(s) | Protocol/port |
|---|---|---|---|
| Cloud Connector Appliance (CCA) to Frame Platform | Public IP address |
|
tcp/443 (HTTPS) |
| Cloud Connector Appliance (CCA) to Frame Platform | Public IP address |
|
tcp/443 (HTTPS, WSS) |
| Prism Central to Frame Platform | Public IP address |
|
tcp/443 (HTTPS) |
| Workload VMs to Frame Platform | Public IP address |
|
tcp/443 (HTTPS) |
| Workload VMs to Frame Platform | Public IP address |
|
tcp/443 (HTTPS, WSS) |
| End user to Frame Platform | Public IP address |
|
tcp/443 (HTTPS) |
| End user to Frame Platform | Public IP address |
|
tcp/443 (HTTPS, WSS) |
