Okta

Okta provides a flexible yet simple Identity Provider solution that integrates easily with the Frame platform. Following the steps below, you simply need to locate, copy, and paste certain values between platforms. This process should take less than fifteen minutes. Refer to Okta documentation for additional information on how to configure Okta.

:::caution Attention

Please be aware that while Okta does have a pre-built Frame app, this app does not yet support group attributes. In order to use group attributes, you must configure the application manually as described below.

:::

Getting Started

  1. Before a SAML2 identity provider can be added, the administrator must enable SAML2 Providers at a given level by navigating to the Admin Console. From there, navigate to the Customer or Organization page (depending on where you wish to add the IdP).

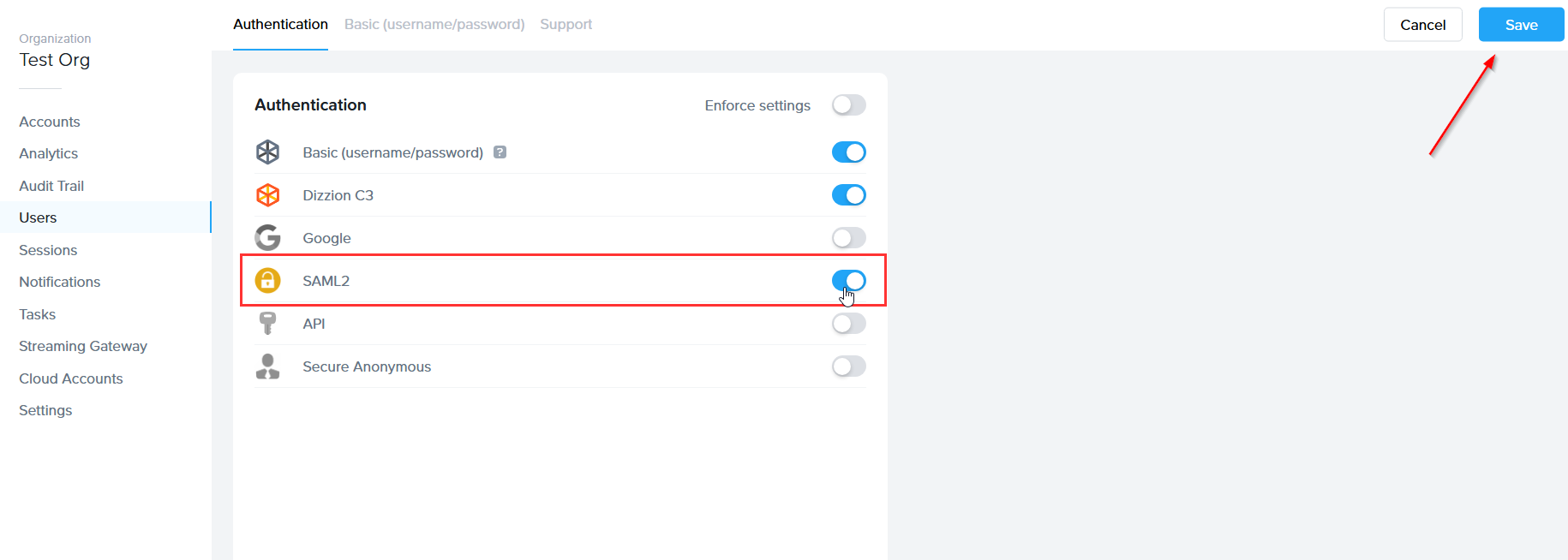

  2. Select Users from the left-hand menu. From there, navigate to the Authentication tab and enable the SAML2 toggle. Click Save.

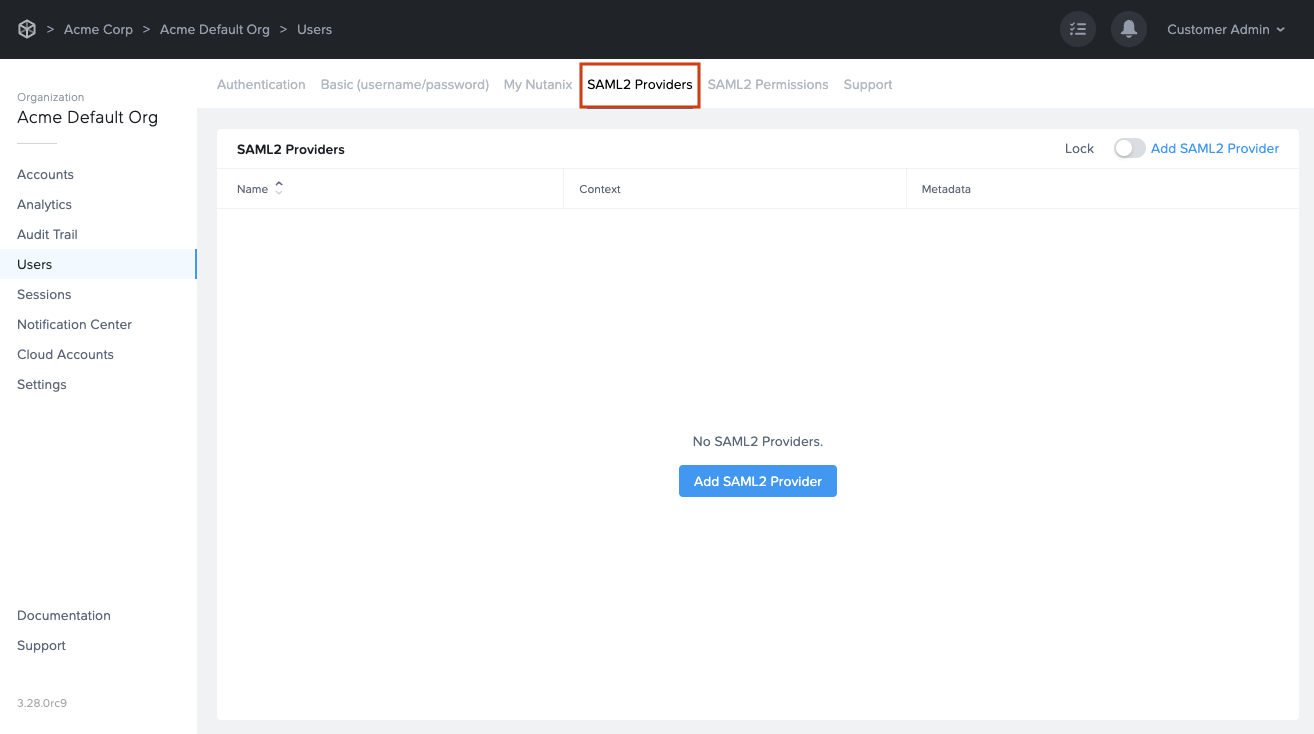

  3. More options will appear next to the Authentication tab, click on the SAML2 Providers tab, then click Add SAML2 Provider.

    Add a SAML2 Provider

  4. Let's keep this browser tab open. We'll return back to it after a few steps in Okta's Dashboard.

Add an Application to Okta

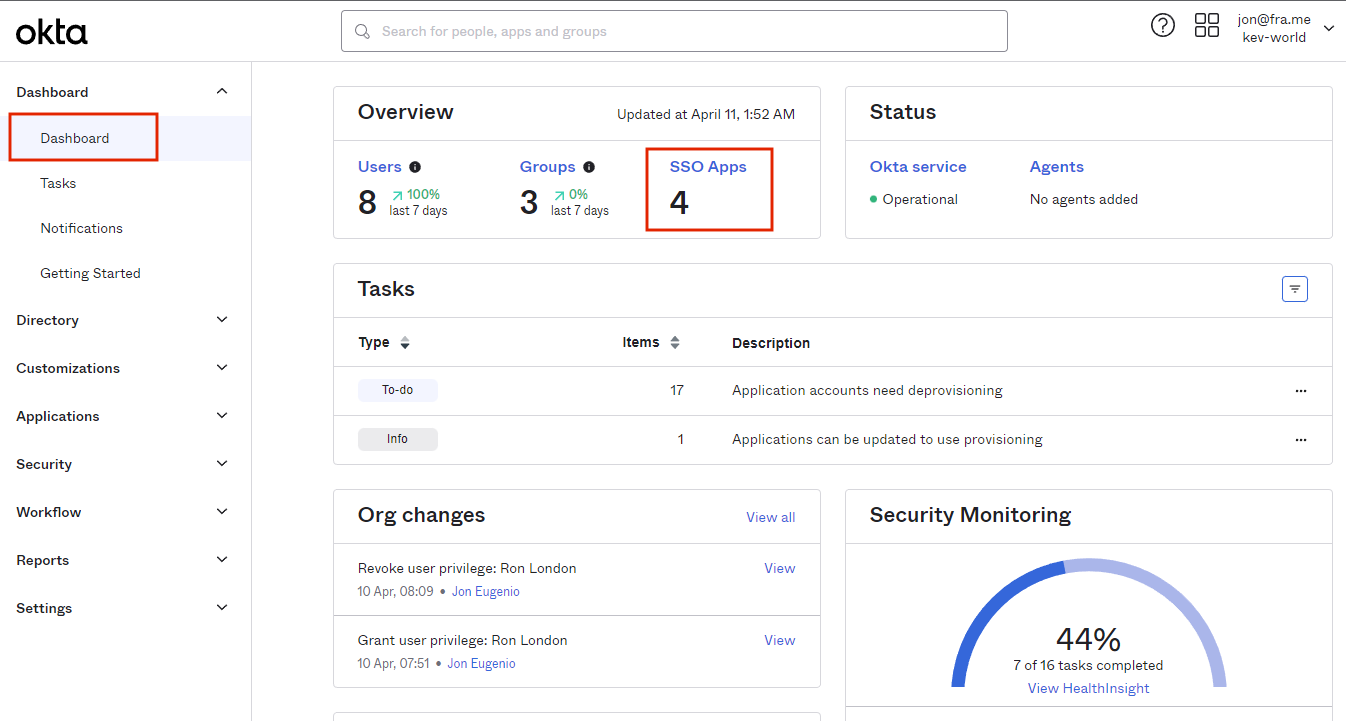

  1. In a separate/new tab, log in to your Okta account as an Admin and open the Dashboard. Select SSO Apps.

    Add a new Application

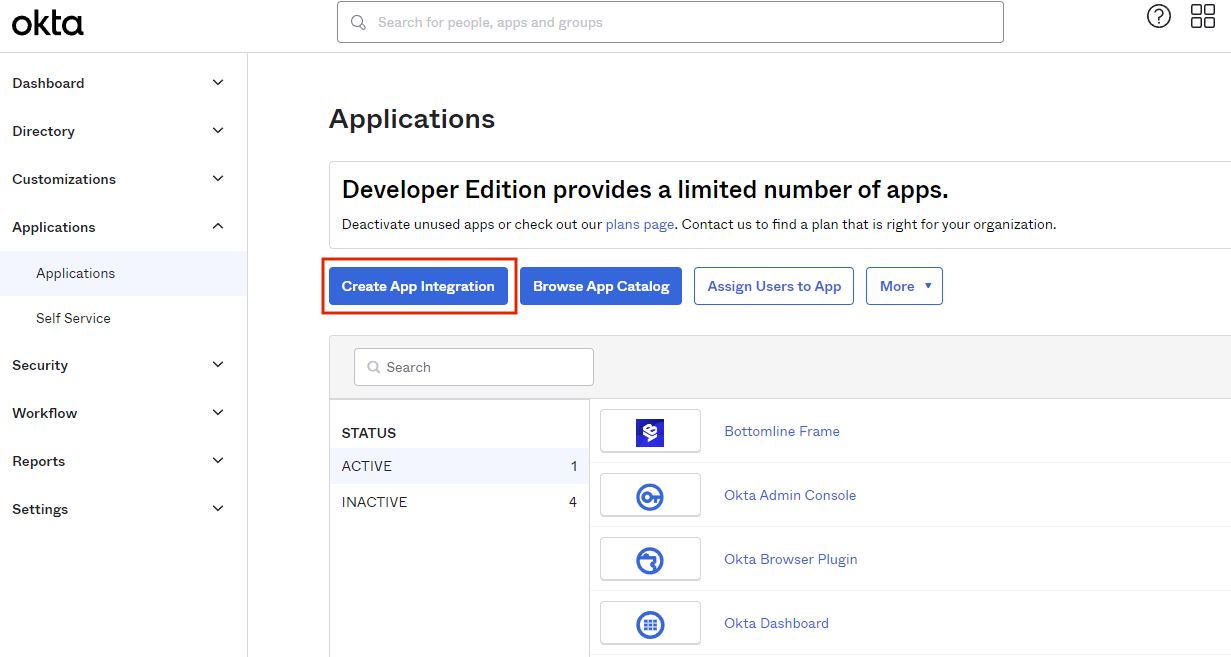

  2. Click Create App Integration in the top-left corner of the page.

    Create our Frame "application" in Okta

  3. Select SAML 2.0 and click Next.

    Select SAML 2.0

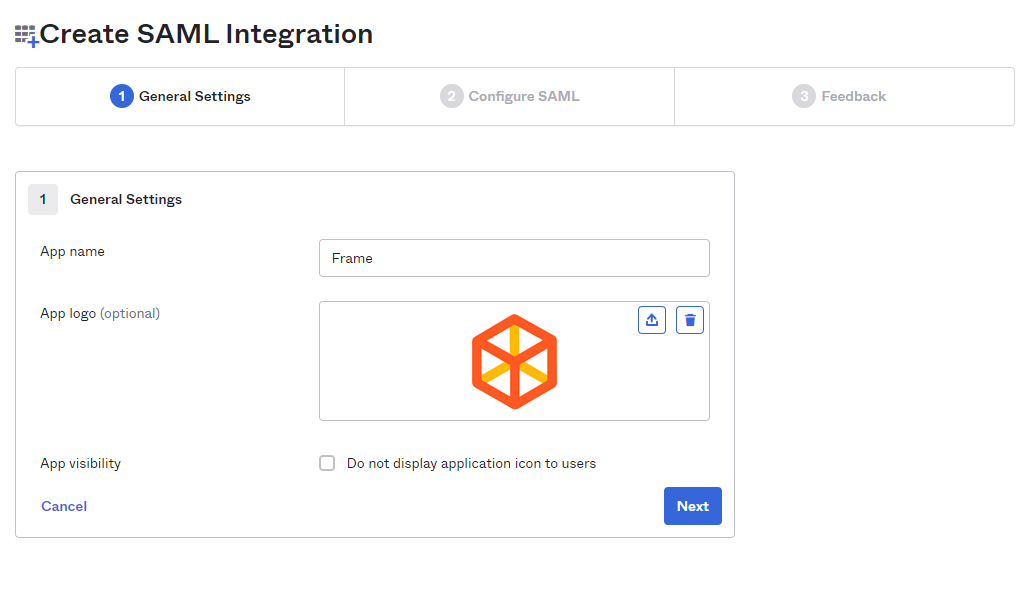

  4. Provide an app name and icon. We've provided a Frame icon below for convenience:

    Frame App Logo

    Okta app name and icon

  5. From there, you will be taken to the SAML Settings page.

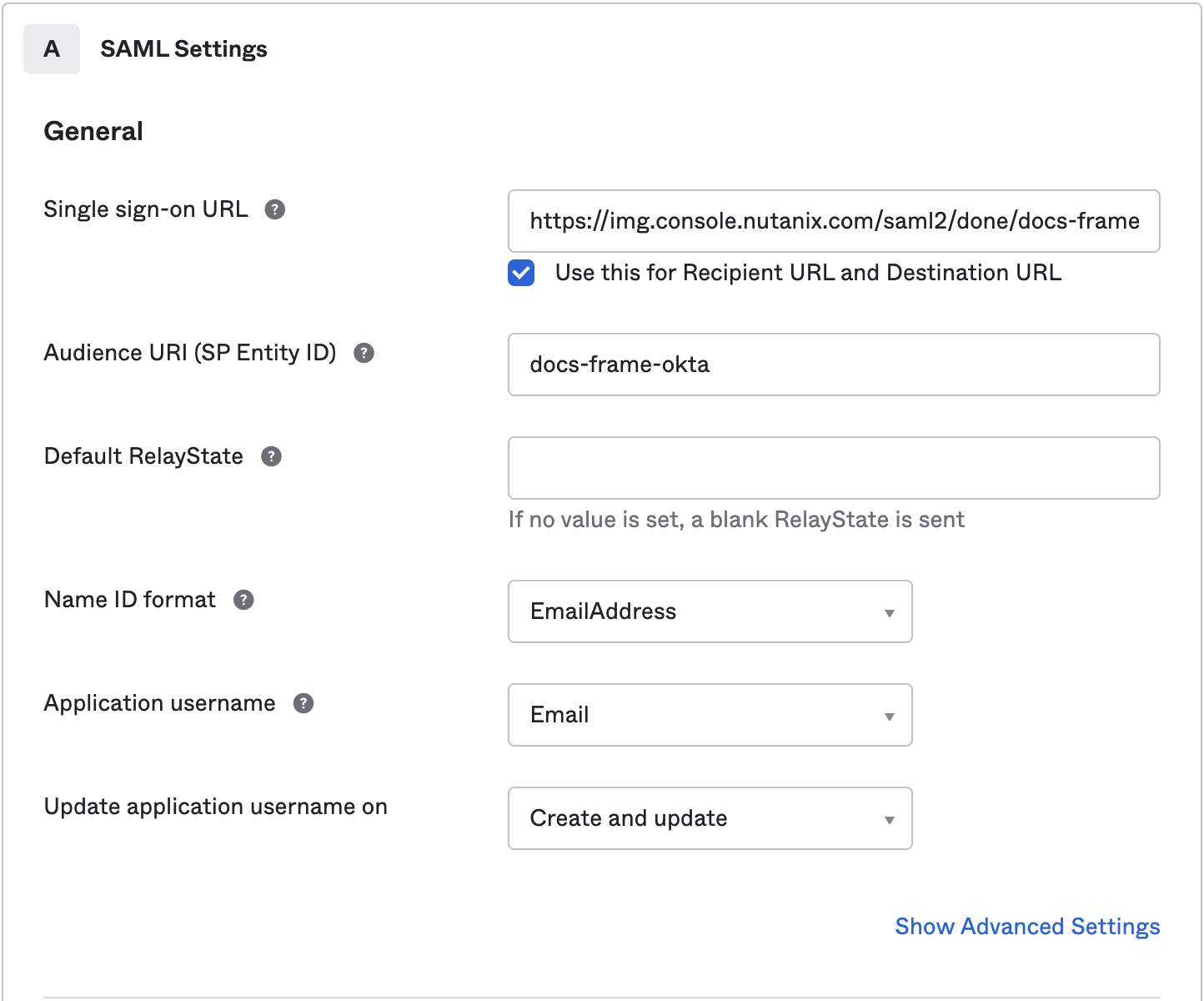

    SAML Settings

    Next, it's time to paste our Single sign-on URL from the Getting Started section of this page.

    :::caution Caution

    The forward slash at the end of the URL is required for the integration to work correctly.

    :::

  6. Next, we'll enter the following information:

  • Audience URI: A DNS-compliant string. For this example, we will use docs-frame-okta. This customer-defined string will be entered on the Frame side as our Application ID later on. You must use a unique Audience URI for your own IdP integration.
  • Default RelayState: This field can be left blank for SP-initiated SSO scenario. For IdP-initated SSO scenarios, you will need to specify the URL your IdP will redirect the user to once the user has authenticated to Okta. The value can be a custom entity endpoint URL or a Launch Link URL.

  1. Configure how Okta will specify the Subject for the SAML2 assertion.

    SAML Settings - Name ID format, Application username

  • Name ID format: Use value of EmailAddress
  • Application username: Use value of Email

  1. Select Show Advanced Settings in the bottom right corner and the Okta fields shown in the following screen will be visible.

    SAML Advanced Settings

Update the following fields:

  • Response: Use value of Unsigned
  • Assertion Signature: Use value of Signed
  • Other Requestable SSO URLs: If you plan to use the Frame Login Page, add a second Single sign-on URL with the FQDN img.frame.nutanix.com with an index of 1. For example, https://img.frame.nutanix.com/saml2/done/docs-frame-okta/ for the above example.

  1. Add three Attribute Statements. They must be exactly as shown here, including capitalization. Additionally, you can add “Group Attribute Statements” if you wish. We go into detail for passing group attributes/claims in later steps.

    SAML2 Attribute Mappings

  2. Click Next and fill out the feedback page as desired.

    Okta Feedback

    Click Finish.

  3. You will automatically be taken to the Sign On page/tab where we'll obtain the final piece of information. Scroll down to the bottom box under the Sign On Methods section and right-click on the blue Identity Provider metadata link. Copy the link URL and save it somewhere to reference in later steps.

    Copy the metadata URL

    The Okta side of the setup is now complete. Next, we'll configure the Frame side of the integration using the the values we've copied from these steps in the Okta Dashboard.

Final Steps

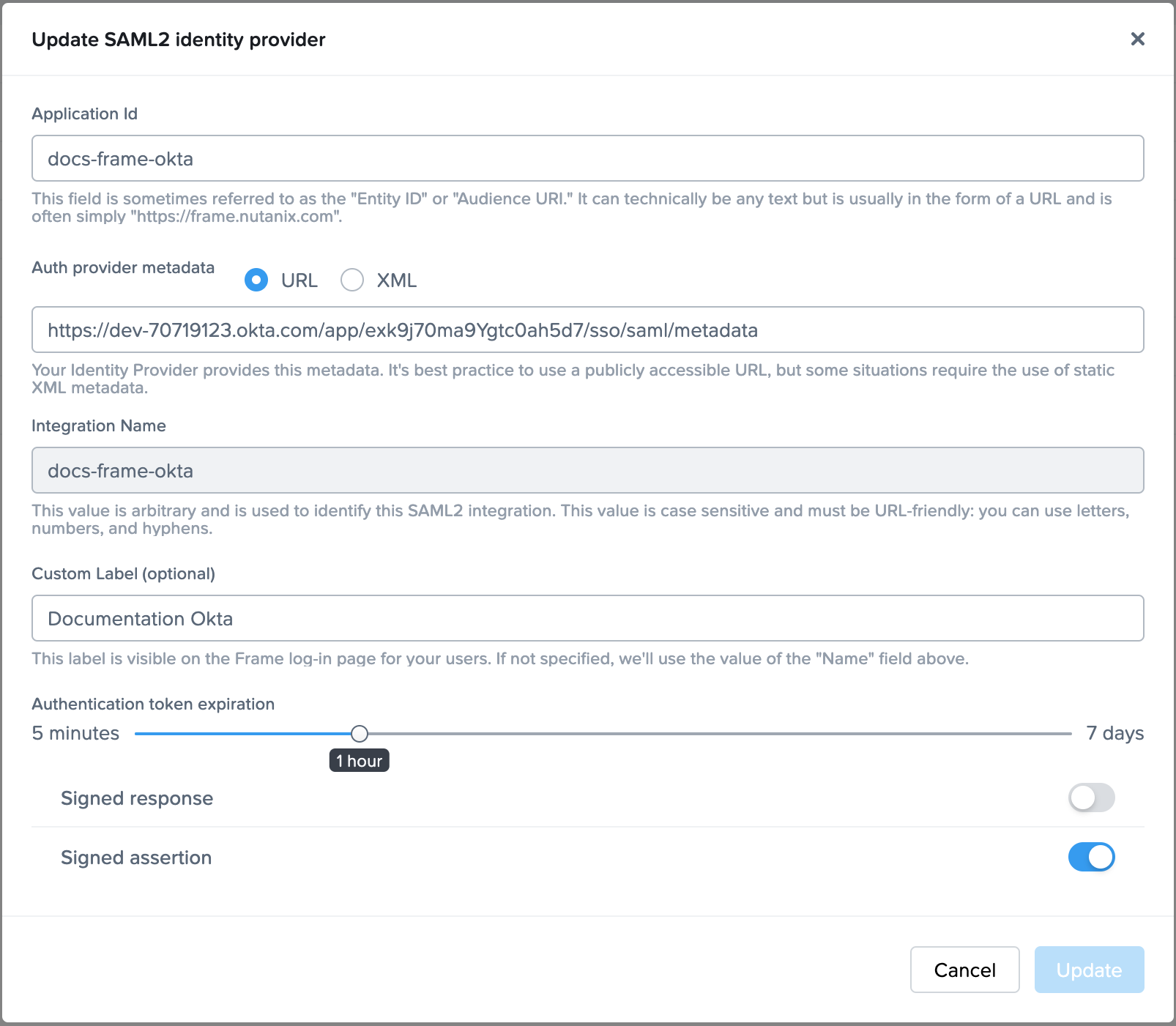

  1. Navigate back to your Frame tab and enter the following data into our Add a SAML2 Identity Provider form:

    Frame SAML2 Identity Provider Form

    • Application ID: The Application ID identifies a partner across federation interactions and can be set to any DNS-compliant string. In this example, we used docs-frame-okta. You must use the Audience URI (SP Entity ID) value from your Okta IdP configuration.
    • Auth provider metadata: Check the “URL” option and paste the Identity Provider metadata URL (reference step 15 above) into the “Auth provider metadata” field as shown above. The metadata URL must be publicly accessible to Frame Platform on the Internet.
    • Integration Name: Enter your unique SAML2 integration name here from the Getting Started section at the top of the page.
    • Custom Label: When specified, this value will be used in the login page as Sign in with <Custom Label>.
    • Authentication token expiration: Set the desired expiration time for the authentication token. This can range from 5 minutes to 7 days.
    • Signed response: Leave this toggle disabled. If you wish to use Signed SAML2 Responses, you would need to go back to your Okta IdP configuration and enable Response to be Signed.
    • Signed assertion: Enable this toggle.

    Click Add.

You have successfully created your Okta integration with the Frame platform! Move on to the next section for configuring roles and permissions for your users, as well as information for passing Group attributes to Frame.

:::note SAML2 Configuration Lock

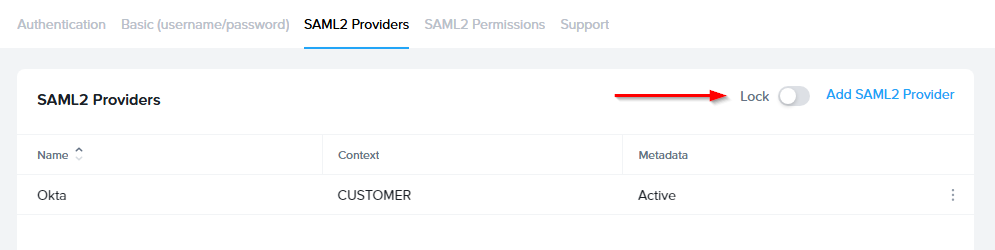

Customer Administrators have the option to lock SAML2 IdP configurations at the Customer level of the Frame tenant. When the toggle pictured below is enabled, SAML2 IdP integrations cannot be added from the Organization or Account levels of the Frame tenant.

Configuration Lock

:::

Configuring Permissions

Once the IdP is successfully configured on Frame, administrators will need to configure the authorization rules for the account from the SAML2 Permissions tab listed to the right of the SAML2 Provider tab, as discussed in our Roles and User Permissions with a SAML2 IdP sections.

Passing Group Attributes

You can authorize any groups of users you want to allow to use the Frame platform based on the user-group assignments you have configured in Okta. We recommend following the guidance of Okta's support team provided in this link regarding group attribute statements with custom SAML applications.

Groups attribute and the associated set of Okta groups to insert in the SAML2 Response can be defined in Okta. In this example, enter groups for the group name attribute and define the group name inclusion filter.

Group Attribute Statements

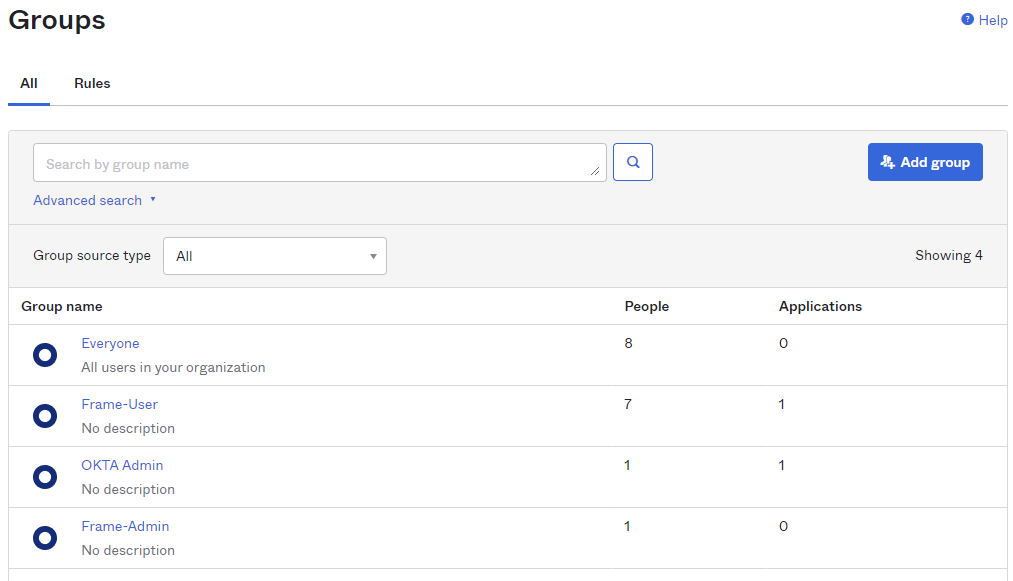

Here's an example of a list of groups in Okta:

Groups in Okta

Assuming that one of the Okta groups that is passed to Frame is Okta-Contractors, the Frame administrator would specify a SAML2 permission where any user's SAML2 response contains a value of Okta-contractors in the groups SAML2 attribute will be granted Account Administrator role on Frame account Contractor Account.

Groups in Okta

Signing into Frame with Okta

Your new SAML2 auth integration will appear as button on your Frame login page. The URL for navigating to your Frame login page will vary depending on which level the SAML2 integration was configured. See our section about Entities and URLs to help pick the right one for you and your end-users and/or staff.

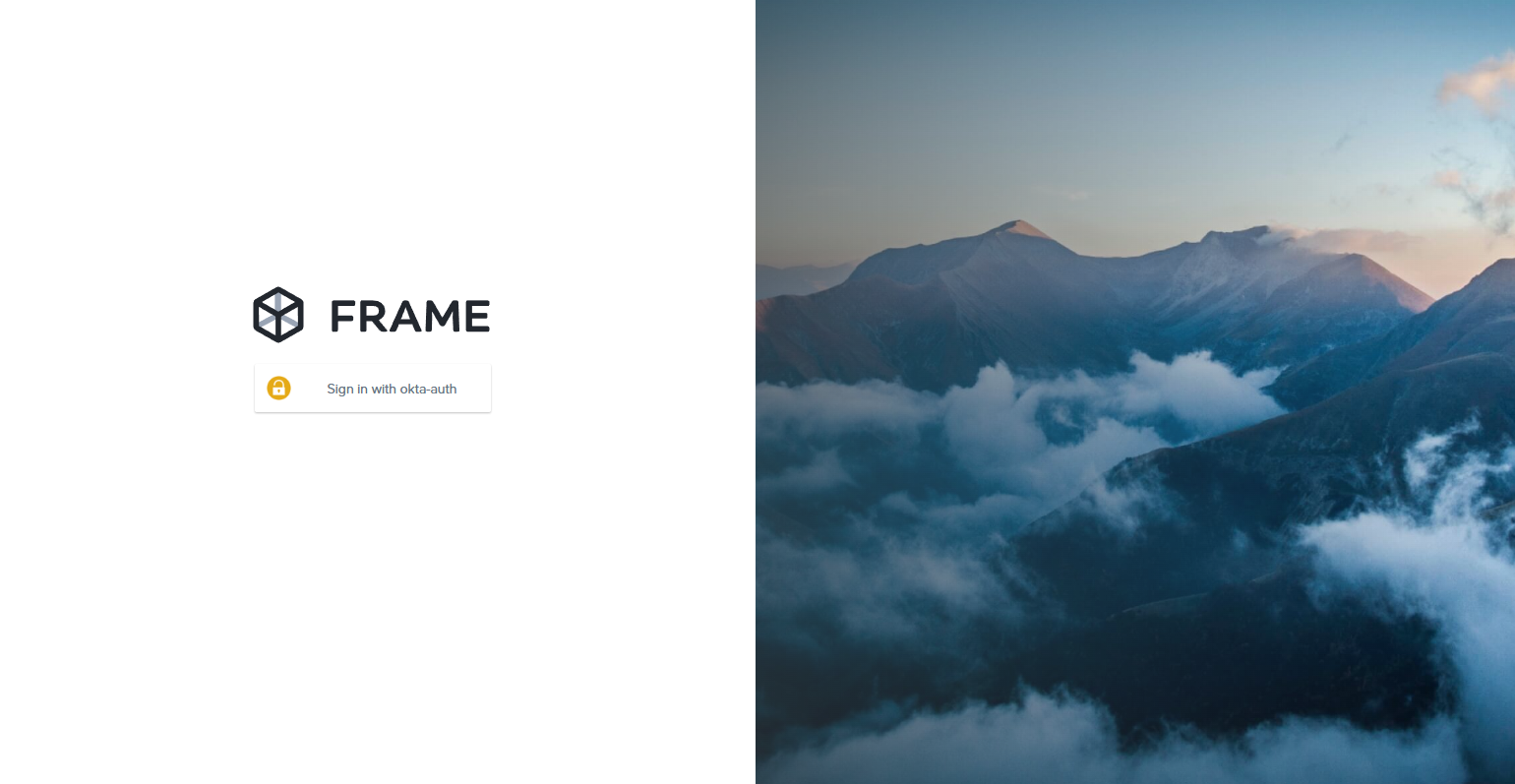

When landing on a URL configured for your Okta SAML2 Integration, your end-users should see an option like this:

Groups in Okta
